| Place of Origin: | CHINA |
| Brand Name: | OEM |
| Certification: | ISO9001, CE, SGS |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Multiple packaging |
| Delivery Time: | 10-15 working days |
| Payment Terms: | T/T, L/C, T/T, Western Union |
| Supply Ability: | 10000PCS |
| Type: | 600w Mono Solar Panel, Standard Solar Panel | Size: | 1956*1620*45mm |
|---|---|---|---|
| Front Cover: | 3.2 Mm Coated Tempered Glass | Back: | TPT |
| Frame: | Aluminum Alloy | Power Tolerance: | 0~+3% |
| Junction Box: | MC4 Connector TPT Back Sheet | Efficiency: | 21.24% |
| Voltage: | 60v | ||
| Highlight: | 600W PV Solar Panels,Waterproof Mono Solar Cell,60v PV Solar Panels |
||

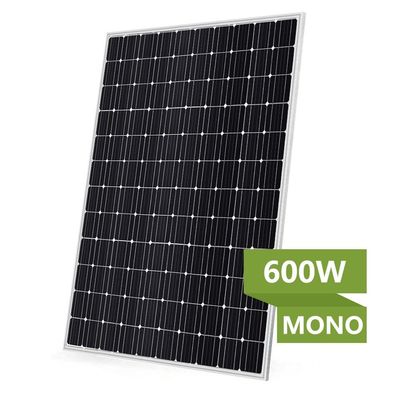

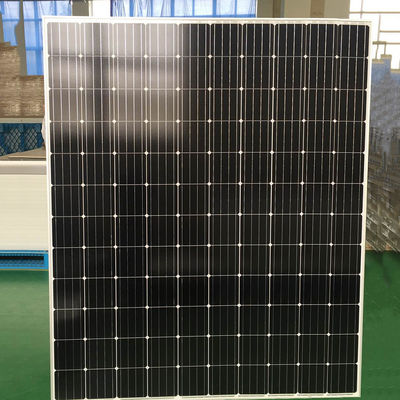

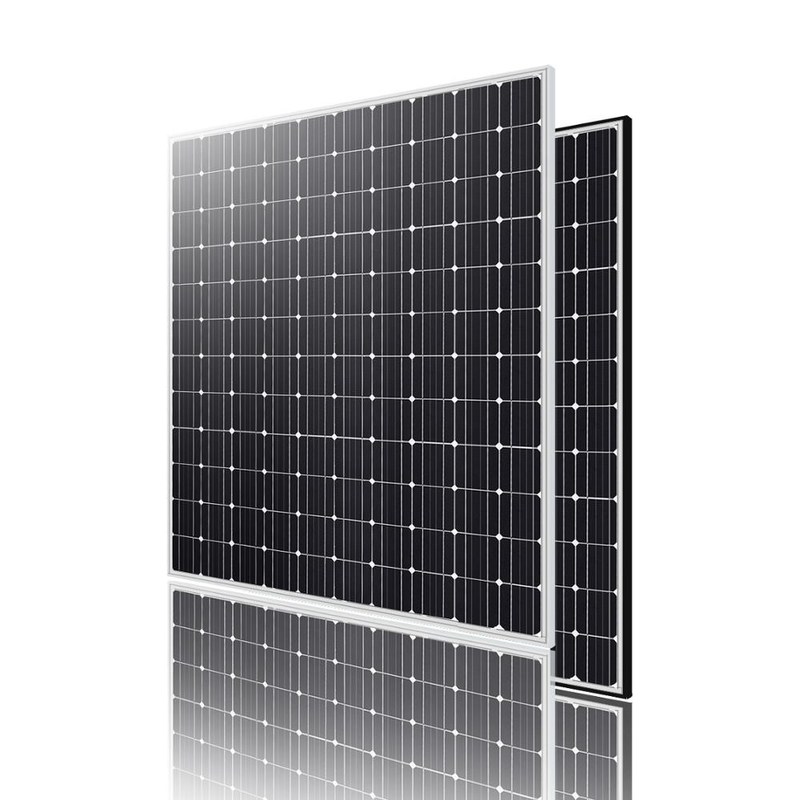

600 Watt Photovoltaic Solar Panels
Characteristics
|
Type No. |
HT-M600W-120P |
||
|
Size |
1956*1620*45mm |
||
|
No.Cells |
120(10*12)pcs |
||
|
Cell Efficiency |
18.5%-21.5% |
||
|
Cell Dimension |
Mono solar cells 156*156mm |
||
|
Peak Power |
600w |
||
|
Maximum Power Voltage(Vmp) |
63.6V |
||
|
Maximum Power Current(Imp) |
9.23A |
||
|
Open Circuit Voltage(Voc) |
74.3V |
||
|
Short Circuit Current(Isc) |
9.69A |
||
1. Mono solar cell
1) Efficient PV conversion, stable performance
2) Unique etching process can increase the short-circuit current of the solar cell
3) Advanced PECVD technology provides well-proportioned navy blue silicon nitride anti-reflection velum
4) Screen printing patterns are accurate and smoothness of the electrode is improved thus making the cell easier for welding and laser cutting
2. Frame
1) High quality, strictly quality inspection during production and whole inspection before package
2) Hundreds of standard designs can be available and supplied
3) Simple and easy installation
4) High brightness and hardness
5) Strong coated adhesion
6) Anti-scratch, smoothness
3. Glass
1) High luminousness, high stability, low reflectivity, waterproof and high safety
2) High transparent AR coating ultra clear low iron glass

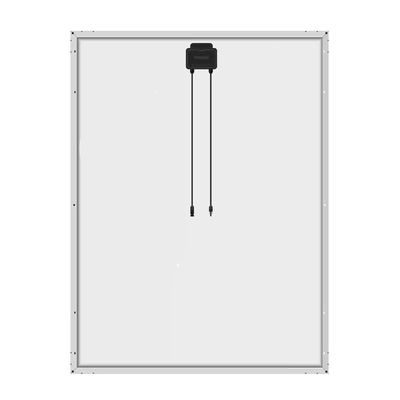

4. Junction box
1) Power loss less than 0.3Watt
2) Simple, quick and safe installation
3) IP65:the innovative sealing design, dust-proof and water-proof
4) Strong current and high voltage load capacity
5) Excellent material which meets UL94-V0 fire safety standard for long term outdoor application which it's outstanding and anti-ageing, waterproof and UV-resistance propeties
5. MC4 Connector
1) Highly robustness, UV-Resistance
2) Connector adopts touch and insertion of reed with inner-knob type
3) Auto-lock equipment of male and female points enable connection more easy and reliable
4) Popular figure suits most of field installation
5) Accommodates PV cable with deferent insulation diameters
6) The maximal working current will be changed when fixed with different types of diode
