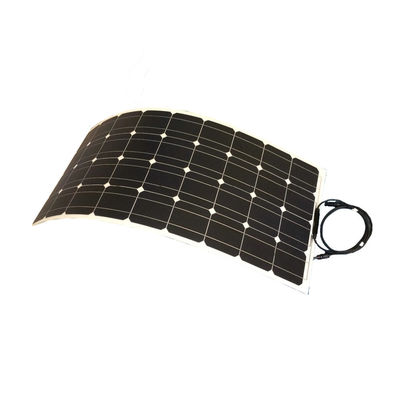

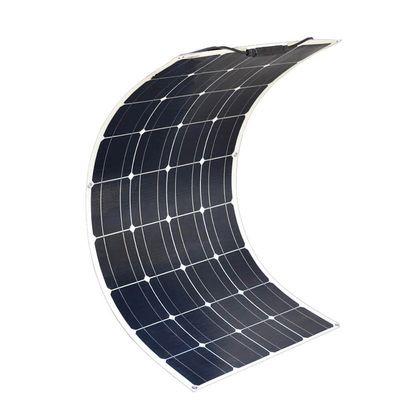

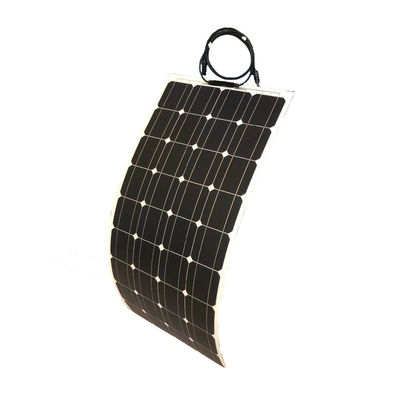

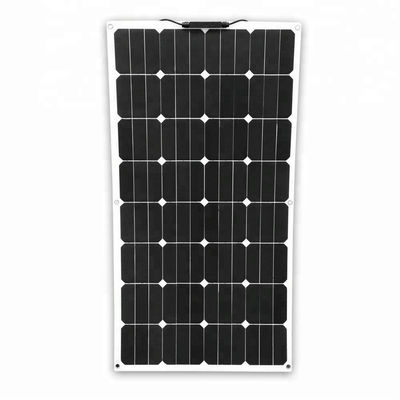

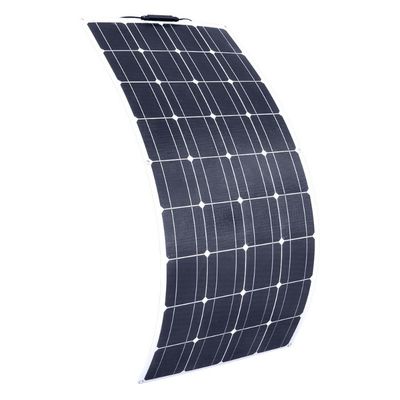

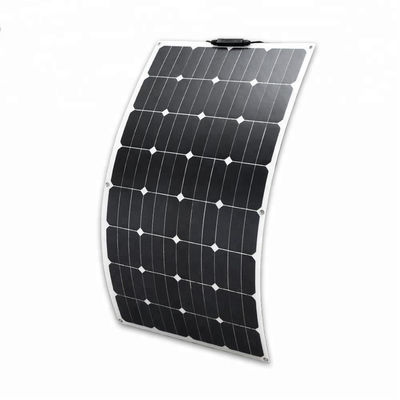

110W Semi Flexible Solar Panels

Product Details:

Place of Origin:	CHINA
Brand Name:	OEM
Certification:	ISO9001, CE, SGS

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Price:	Negotiation
Packaging Details:	Multiple packaging
Delivery Time:	10-15 working days
Payment Terms:	T/T, L/C, T/T, Western Union
Supply Ability:	10000PCS

Contact Now

Detailed Product Description

Size:	1070*670mm	Solar Cell:	Mono 156*156 Cell
Junction Box:	MC4 Connector	Weight:	2.5KG
Power:	110W	Vmp:	18V
Application:	Home Solar System	Type:	Customized Solar Panel
Cell Efficiency:	17-19%	Selling Units:	Single Item
Single Package Size :	120X6X70 Cm	Single Gross Weight:	5.000 Kg
Highlight:	156*156 Monocrystalline Solar Cells , Lightweight Flexible Solar Panels , 18V 110 Watt Solar Panel

12 volt eftf solar panel flexible laminated 100w semi flexible solar panel

Product Description

This 110W semi flexible solar panel can be widely used on yacht, boat, RV roof and so on. Our 2nd generation newest product main advantage is higher efficient in producing power, more light in weight and more water proof and durable in long use.

Main Features:

Semi flexible : bending angle up to about 30 degrees

Durable with aluminum backsheet or fiberglass backsheet, no glass
Light weight for easy carry.
The thickness only 2.5mm, easy joint to your yacht or RV roof.
EVA, solar cell , oxidation resistance PCB or aluminium sheet laminated with more waterproof and aniti aging , long life.

Product Paramenters

Mechanical Data:
1). Flexible Angle : up to 20 degree
2). Back Sheet: aluminum or fiberglass (PCB)
3). J-Box: IP 67 rated
4). Thickness of ETFE: 0.025mm
5).Thickness of solar panel: 2 5mm or 3mm
6).Cables/Connector: 0 9meters, 2*2.5mm2 cable with MC4 connectors
7). Type of Solar Cells: 156 Monocrystalline silicon cells.
8). Eyelets: 4pcs in the corners
9). By pass diode: 2pcs (10A for each )

Key Words	semi flexible solar panel
OS110-18MFX	110W
Vmp	18V
Cell Efficiency	18.5%-20%
Size	10706702.5mm
Isc	6.7A
Imp	6.1A
Voc	21.24
Number of cells	36pcs

Details Images
