Place of Origin: | CHINA |
Brand Name: | OEM |
Certification: | ISO9001, CE, SGS |
Minimum Order Quantity: | Negotiable |
---|---|
Price: | Negotiation |
Packaging Details: | Multiple packaging |
Delivery Time: | 10-15 working days |
Payment Terms: | T/T, L/C, T/T, Western Union |
Supply Ability: | 10000PCS |
Rated Voltage: | 12V/24V | Max.Input Voltage: | 55V |
---|---|---|---|
Internal LCD Display: | Yes | USB Output: | 5V/1A |
Shell Material: | ABS | Operating Temperature: | -25℃~55℃ |
Application: | Collector Controller | Output Current: | 10A |
Max.Input Power: | 180W/12V;360W/24V | Weight: | 0.1KG |
Dimensions: | 103*71*36(mm) | ||
Highlight: | 10 Amp PWM Solar Charge Controller,24 Volt Solar Panel Charge Controller,12V Automatic Solar Charge Controller |

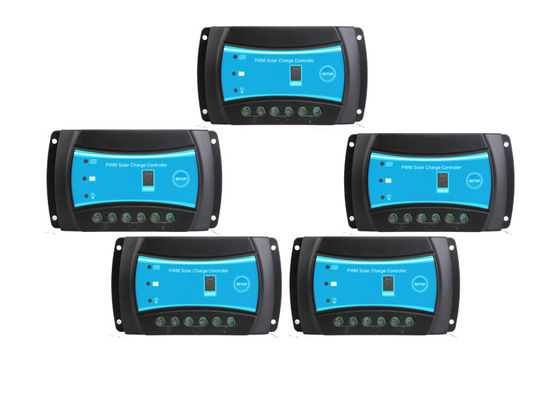

12V 24V Intelligent Solar Charge Controller
Advantage:
1. 12V/24V automatic recognition
2. IP30,Strong and durable aluminum case
3. Full automatic electronic protect function
4. 5 stages time could be adjusted
5. External temperature sensor, automatic temperature compensation
6. PWM voltage regulation use 3 stages of charging way
7. Remote(infrared) Unit to configure,with LCD display
8. Battery type and protection level selection
Features
1. 12V / 24 V system voltages are automatically recognized.
2. An upgraded 3-stage PWM charging algorithm is adopted. Application of an equalizing charging to the battery periodically or when over discharged, can effectively prevent the battery from non-equalization and sulfuration, thus extending the battery's service life.
3. With temperature compensation employed, charging parameters can be automatically adjusted.
4. A wide range of load working modes facilitate the product's application to different types of load.
5. The product provides overcharge, over-discharge, overload protection, as well as short-circuit protection.
6. By virtue of an advanced load starting method, large-capacitance loads can be started smoothly.
7. The product provides a dot matrix graphic LCD screen and a human-machine interface with a key.
8. The user-friendly design of browser and dynamic interfaces ensure convenient and intuitive operations.
Parameter of SR-HP2410/2420
Model | HP2410 | HP2420 | HP2420-S |
Rated current | 10A | 20A | 20A |
current display function | No | No | Yes |
System voltage | Automatic recognition of 12 V/ 24 V | ||
No-load loss | < 10mA/12V;< 12mA/24V | ||
Max. Solar energy input voltage | <55V | ||
Max. voltage at the battery end | <35V | ||
Overvoltage protection | 17.0V×2/24V | ||
Equalizing charging voltage | 14.6V×2/24V | ||
Boost charging voltage | 14.4V×2/24V | ||
Floating charging voltage | 13.8V×2/24V | ||
Charging recovery voltage | 13.2V×2/24V | ||
Over-discharge recovery voltage | 12.6V×2/24V | ||
Over-discharge voltage | 11.1V×2/24V | ||
Equalizing charging interval | 30days | ||
Equalizing charging time | 1H | ||
Boost charging time | 2H | ||
Temperature compensation | -3.0mV/℃/2V | ||
Light control voltage | Light control on 5V, ×2/24V; | ||
light control off 6V, ×2/24V; | |||
Light control judgment time | 1minute | ||
Operating temperature | -25℃ to +55℃; | ||
IP protection degree | IP30 | ||
Net weight | 100g | 160g | |
Protection functions | Solar panel short circuit and reverse-connection protection | ||
Dimensions | 103×71×36(mm) | 130×75×38 (mm) |
Product Description
