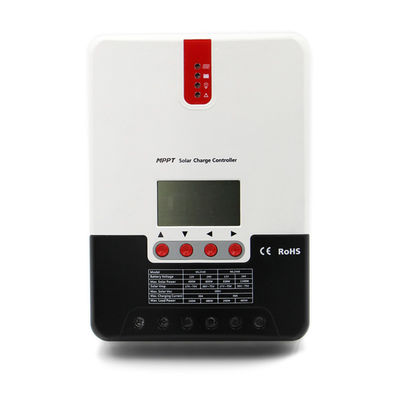

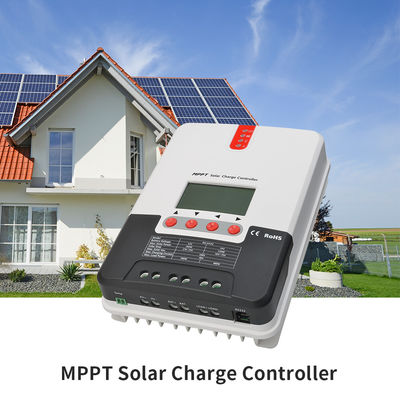

20A Smart MPPT Charge Controller

20A Smart MPPT Charge Controller

    • 20A Smart MPPT Charge Controller
    • 20A Smart MPPT Charge Controller
  • 20A Smart MPPT Charge Controller

    Product Details:

    Place of Origin: CHINA
    Brand Name: OEM
    Certification: ISO9001, CE, SGS

    Payment & Shipping Terms:

    Minimum Order Quantity: Negotiable
    Price: Negotiation
    Packaging Details: Multiple packaging
    Delivery Time: 10-15 working days
    Payment Terms: T/T, L/C, T/T, Western Union
    Supply Ability: 10000PCS
    Contact Now
    Detailed Product Description
    Application: Solar System Controller System Current: 20A
    Load Power (W): 360W~2880W Solar Power (W): 540W~4320W
    Solar Input Voltage: <100v Weight: 1.15Kg
    Size: 180.7*115*72(mm) Work Temperature: -35℃ To 85℃
    Communication Port: RS232 Product Name: ML2420 20Amp Mppt Solar Energy Charger Controller
    Highlight:

    20A MPPT Solar Charge Controller 12v

    ,

    MPPT Smart Solar Charge Controller

    ,

    MPPT 20A Solar Charge Controller

    20A Smart MPPT Charge Controller



    Product Description


    1. Clock timing function
    2. Regulatory mechanism of temperature compensation(Only available in 30A/40A/50A/60A)
    3. Ultra Low Power Consumption
    4. Built-in solar data monitoring interface(RS485)(Only available in 30A/40A/50A/60A)
    5. LCD Display with backlight
    6. Good heat dissipation effect with less noise
    7. Light control mode, Time control mode
    8. Reverse protection, short circuit protection
    9. Designed for 12V/24V/48V solar power system
    10. Hanging style design makes it convenient to install
    11. Available in 10A/20A/30A/40A/50A/60A

    Protection

    * PV array short circuit
    * over discharge Protection
    * Discharge voltage protection
    * IP21 Mechanical protection
    * Load overload
    * the input low voltage protection
    * PV Lightning protection
    * Battery reverse polarity
    * The overcharger protection voltage



    Parameter of SR-ML2420



    Parameter ML2420
    System voltage 12V/24V Auto
    No-load loss 0.7 W to 1.2W
    Battery voltage 9 to 35
    Max. solar input voltage 100V (25°C), 90V (-25°C)
    Max. power point voltage range Battery voltage +2V to 75V
    Rated charging current 20A
    Rated load current 20A
    Max. capacitive load capacity 10000uF
    Conversion efficiency ≤ 98%
    MPPT tracking efficiency > 99%
    Operating temperature 35°C to +45℃
    Protection degree IP32
    Weight 2kg
    Communication method RS232
    Altitude ≤ 3000m
    Product dimensions 238*173*72.5mm



    ce rohs 12V 24V 20Amp mppt Off grid SRNE ML2420 solar recharger With LCD

    ce rohs 12V 24V 20Amp mppt Off grid SRNE ML2420 solar recharger With LCD
