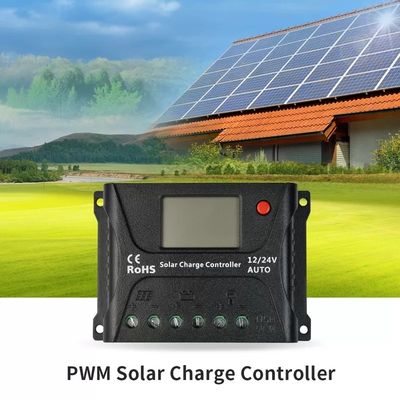

50A PWM Solar Charge Controller

I'm Online Chat Now

50A PWM Solar Charge Controller

China 50A PWM Solar Charge Controller supplier
50A PWM Solar Charge Controller supplier 50A PWM Solar Charge Controller supplier

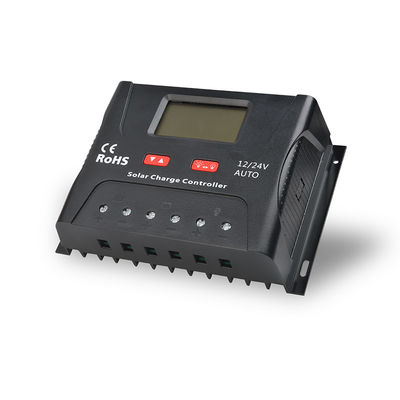

Large Image :  50A PWM Solar Charge Controller

Product Details:

Place of Origin: CHINA
Brand Name: OEM
Certification: ISO9001, CE, SGS

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Price: Negotiation
Packaging Details: Multiple packaging
Delivery Time: 10-15 working days
Payment Terms: T/T, L/C, T/T, Western Union
Supply Ability: 10000PCS
Contact Now
Detailed Product Description
Maximum Current: 50A Rated Voltage: 12V/24V Auto
Max Charge Current: 50A Energy Input Voltage: 55V
No-load Loss: < 13mA/12V;< 15mA/24V Max. Voltage At The Battery End: <34V
With LCD Display: Yes Working Temperature: -25~+55℃
Application: Charger Controller Display: LCD Screen
Weight: 650g Size: 189.27*127.2*54mm
High Light:

PWM LCD Solar Charge Controller


12V Automatic Solar Charge Controller


50 Amp PWM Solar Charge Controller

50A PWM Solar Charge Controller




1. Automatic identification of 12V/24V system voltage.

2. LED digital display and single key operations which makes operate simply and conveniently.

3. Adopting ternary form charging algorithm, charge the storage battery in equalizing charge mode once a week .It can prevent battery from imbalance and vulcanization effectively, also battery service life will be extended.

4. Five working modes which made it convenient to use in all kinds of street lamps and monitoring devices.

5. It can be used in a variety of environments by Level of industrial design.

6. Has the electricity protection data function .Parameter can be stored when the power system failure. No need to setting again. It is very simple and convenient to use.

7. Various status indications.

8. Over charging protection, over discharging protection, over load, short circuit protection, reverse polarity protection.

9. TVS lightning protection.





Rated current



System voltage

Automatic recognition of 12V/24V

Rated power





No-load loss

< 13mA/12V;< 15mA/24V

Max. Solar energy input voltage


Max. voltage at the battery end


Overvoltage protection


Charging recovery voltage


Over-discharge recovery voltage

12.5V(settable with the keys)

Over-discharge voltage

11.0V(settable with the keys)

Boost charging time


Temperature compensation


Light control voltage

Light control on 5V, light control off 6 V (light control on plus 1 V)

Light control judgment time

10 minutes

USB function


Operating temperature


IP protection degree


Net  weigh


Protection functions

attery reverse connection protection, solar panel reverse connection protection Notice 1, reverse charging protection at night ,Charging overload protection, overcurrent protection , short circuit protection


189.27×127.2×54.0 (mm)
