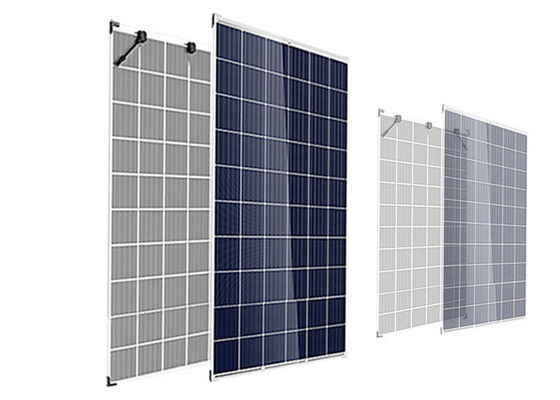

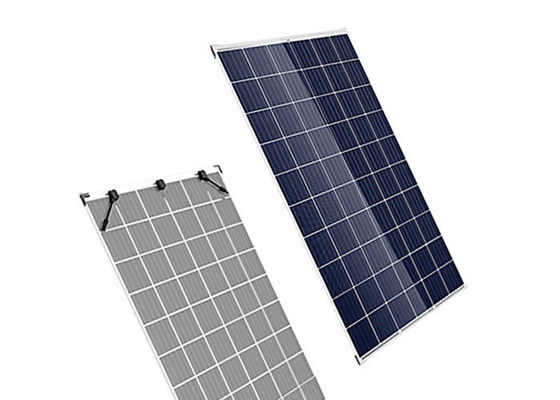

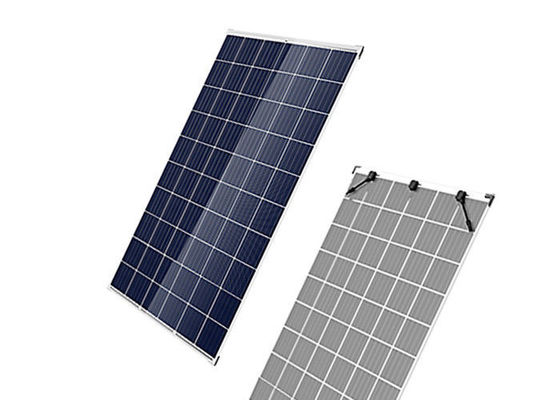

60 Cells Poly Solar Panel

60 Cells Poly Solar Panel

    • 60 Cells Poly Solar Panel
    • 60 Cells Poly Solar Panel
    • 60 Cells Poly Solar Panel
  • 60 Cells Poly Solar Panel

    Product Details:

    Place of Origin: CHINA
    Brand Name: OEM
    Certification: ISO9001, CE, SGS

    Payment & Shipping Terms:

    Minimum Order Quantity: Negotiable
    Price: Negotiation
    Packaging Details: Multiple packaging
    Delivery Time: 10-15 working days
    Payment Terms: T/T, L/C, T/T, Western Union
    Supply Ability: 10000PCS
    Contact Now
    Detailed Product Description
    Name: 275 Watt Solar Panel Dimension: 1658*992*6mm
    Life Span: 30 Years Model: MDM275
    Power: 275W Max. Voltage: 31.5V
    Efficiency: 16.7% Maximum Power Current: 8.73/A
    Module Efficiency (%): 16.7
    Highlight:

    60 Cells Polycrystalline Solar Panel

    ,

    275W Polycrystalline Solar Cells

    ,

    20V Polycrystalline Solar Module

    60 Cells Poly Solar Panel



    Main Features



    1. Outstanding module performance



    Anti PID

    High hot-spot resistance

    Double semi-tempered glasses strengthen cracking resistance

    Improve heat dissipation



    2. Ensure fire safety performance



    Replace polymer back plate with tempered glass, to improve fire safety performance Passed fire safety test grade A



    3. System cost reduction makes more efficiency



    Maximum system voltage enhanced to 1500V

    System overall cost reduced greatly, compared with 1000V system



    4. Harsh environment adaptation



    High transmittance, anti reflection, self-cleaning coated glass

    No aluminum alloy frame, no PID

    Excellent performance on wind & sand resistance, salt mist resistance, ammonia corrosion resistance



    Electrical performance parameters



    STC (AM1.5, 1000W/m², cell temperature 25℃)
    Model MDM275
    Maximum power (Pm/Wp) 275
    Maximum power voltage (Vmp/V) 31.5
    Maximum power current (Imp/A) 8.73
    Open circuit voltage (Voc/V) 38.41
    Short circuit current (Isc/A) 9.39
    Module efficiency (%) 16.7



    General performance parameters



    Mechanical performance parameters
    Cell Nos & array 60(6*10)
    Diode Nos 3
    Cells dimension(mm) 156.75*156.75 poly
    Cable 4mm2/negative 150mm, positive 300mm
    Module weight (kg) 23
    Module dimension (L*W*H) (mm) 1658*992*6(junction box thickness 16mm)
    Packing 33pcs/carton, 26cartons/40HQ, 858pcs/40HQ
    Quality parameters
    Module working temperature range (℃) -40~+85
    Power tolerance (W) 0~+5
    Maximum system voltage (V Dc) 1500DC
    System maximum protection current (A) 15
    Normal operating cell temperature (NOCT) 45±2℃
    Maximum wind loads/maximum snow loads (Pa) 2400/5400
    Hot spot 100% hot spot free
    Temperature coefficient (STC)
    Temperature coefficient of Voc -0.31%/℃
    Temperature coefficient of Isc 0.05%/℃
    Temperature coefficient of Pm -0.41%/℃



    Drawing(mm)

    60 Cells Poly Solar Panel 0





    60 Cells Poly Solar Panel 160 Cells Poly Solar Panel 2
