Place of Origin: | CHINA |
Brand Name: | OEM |
Certification: | ISO9001, CE, SGS |
Minimum Order Quantity: | Negotiable |
---|---|
Price: | Negotiation |
Packaging Details: | Multiple packaging |
Delivery Time: | 10-15 working days |
Payment Terms: | T/T, L/C, T/T, Western Union |
Supply Ability: | 10000PCS |
Name: | 250w Monocrystalline Solar Panel | Size: | 1950*992*40mm |
---|---|---|---|
Type: | Monocrystalline | Open-circuit Voltage: | 36V Or 43.2V |
Application: | Solar Home System | Weight: | 14.2/18.2/22kg |
Module Efficiency: | 22% | Max Power Voltage: | 17.2V-35.2V |
Max.System Voltage: | 1000V | Module: | GCM60-285Wp |
Highlight: | 300 Watt Monocrystalline Solar Panel,36v Mono Solar Panels,Monocrystalline Solar Panels 250w |
72 Cells Monocrystalline Solar Panel
Product Description
1. IP68 Junction Box, Connector
2. 15A current
3. Super strong frame
4. Current division
5. Salt spray, Ammonia and PID test
6. Strong Mechanical load capacity
7. Color Classification
Moduel |
FSM300W |
FSM320W |
FSM330W |
FSM340W |
FSM350W |
FSM360W |
Rated Maximum Power at STC |
300W |
320W |
330W |
340W |
350W |
360W |
Open Circuit Voltage(Voc/V) |
46V |
46.1V |
46.34V |
46.5V |
47.13V |
47.13V |
Maximum Power Voltage(Vmp/V) |
38.7V |
38.8V |
37.57V |
38.2V |
39.3V |
38.39V |
Short Circuit Current(Isc/A) |
9.53A |
9.65A |
9.75A |
9.25A |
9.35A |
9.45A |
Maximum Power Current(Imp/A) |
9.04A |
9.15A |
8.78A |
9.21A |
9.25A |
9.37A |
Module Efficiency(%) |
20.13% |
20.39% |
20.65% |
20.91% |
21.17% |
21.43% |
Power Tolerance |
0 ~ +3% |
|||||
Standard Test Condition(STC) |
1000W/m2 irradiance, 25°C cell temperature, AM1.5 |

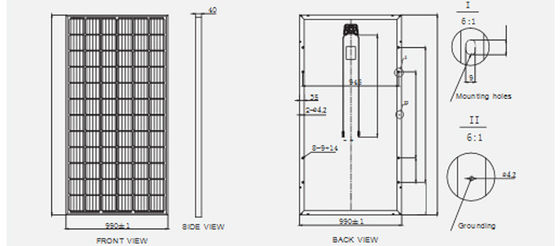

Mechanical Specification
Cell Type |
Mono Crystalline 156.75x156.75mm |
Number Of Cells |
72(6x12) |
Dimensions(A*B*C) |
1950x990x40mm |
Weights |
23KG |
Front Glass |
3.2mm Tempered Low Iron Glass |
Frame |
Clear Anodized Aluminum Alloy |
Junction Box |
IP68, with Bypass Diodes |
Connector |
Mc4 Compatible |
Output Cables |
TUV,±length 900mm,4.0mm² |

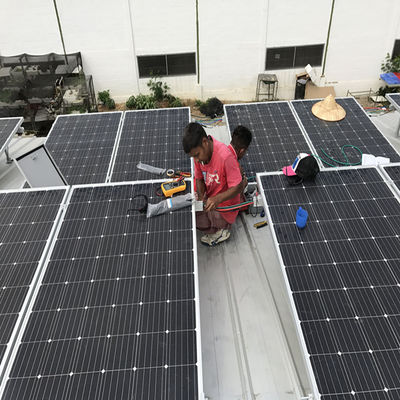

Solar Project
