Place of Origin: | CHINA |
Brand Name: | OEM |
Certification: | ISO9001, CE, SGS |
Minimum Order Quantity: | Negotiable |
---|---|
Price: | Negotiation |
Packaging Details: | Multiple packaging |
Delivery Time: | 10-15 working days |
Payment Terms: | T/T, L/C, T/T, Western Union |
Supply Ability: | 10000PCS |
Type: | PWM | Max PV Voltage: | 47VOC |
---|---|---|---|
System Voltage: | 12/24V | Own Consumption: | < 4 MA |
Open Circuit Voltage Solar Module: | < 47V | Module Current: | 10A |
Load Current: | 10A | End Of Charge Voltage: | 13.9V(27.8V) |
Boost Charge Voltage: | 14.4v (28.8v) | Application: | Charger Controller, Solar Working Station, Lighting Controller, Voltage Controller |
Reconnection Voltage (SOC/LVR): | > 50% 12.4V...12.7V (24.8V...25.4V) | Degree Of Protection: | IP 68 |
Selling Units: | Single Item | Single Package Size : | 10X8X4 Cm |
Single Gross Weight: | 0.180 Kg | ||
High Light: | PWM Solar Street Light Controller,10a PWM Solar Charge Controller,10 Amp Intelligent Solar Charge Controller |

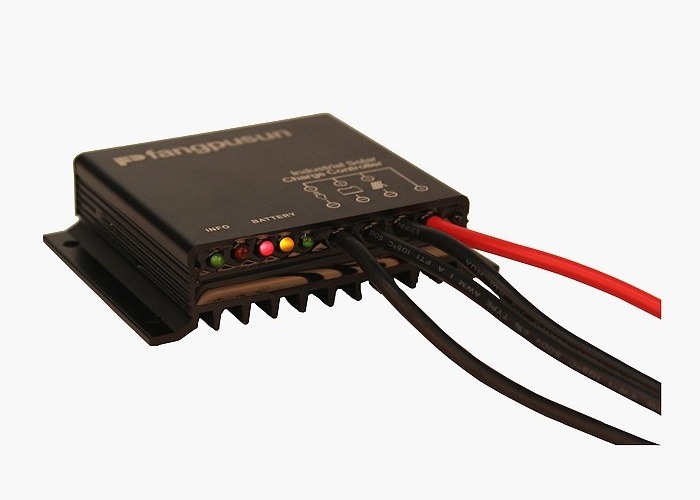

Automatic 10 Amp PWM Intelligent Solar Charge Controller
Product Parameters
|
3.3 E |
7.7 E |
10.10 E |
15.15 E |
Characterisation of the operating performance |
||||
System voltage |
12V (24V) |
|||
Own consumption |
< 4 mA |
|||
DC input side |
||||
Open circuit voltage solar module |
< 47 V |
|||
Module current |
3A |
7A |
10A |
15A |
DC output side |
||||
Load current |
3A |
7A |
10A |
15A |
End of charge voltage |
13.9V(27.8V) |
|||
Boost charge voltage |
14.4 V (28.8V) |
|||
Reconnection voltage (SOC/LVR)
|
> 50% / 12.4 V ... 12.7 V (24.8 V ... 25.4 V) |
|||
Deep discharge protection (SOC/LVD) |
< 30% / 11.2 V ... 11.6 V (22.4 V ... 23.2 V) |
|||
Operating conditions |
||||
Ambient temperature |
-5℃...+50℃ |
|||
Fitting and construction |
||||
Terminal (fine / single wire) |
4mm² / 6mm² - AWG 12/9 |
|||
Degree of protection |
IP 68 |
|||
Dimensions (X.Y.Z) |
82x59x20 mm |
IP68 Series continues the huge success of one of the most used SHS controllers.With a power range of up to 10A at automatically recognized 12v or 24V it fits to a system sizes of maximum 240W.
The circuit board is completely electronically protected and with the Led user interface it is easy to check the battery Fangpusun of charge at any time.Large terminals guarantee a simple connection of solar panels,battery and load. The Fangpusun Solsum E works on PWM as a low loss series controller.
Product Introduction
Solsum 3.3E (3A) Solsum 7.7E (7A) Solsum 10.10E (10A) Solsum 15.15E (15A)
Product Features
* Series controller
* Voltage regulation
* Automatic detection of voltage
* PWM control
* Multistage charging technology
* Current compensated load disconnection
* Automatic load reconnection
* Temperature compensation
* Common positive grounding or negative grounding on one terminal
* Monthly maintenance charge
Electronic Protection Function
* Overcharge Protection
* Deep discharge protection
* Reverse polarity protection of load , module and battery
* Automatic electronic fuse
* Short circuit protection of load and module
* Overvoltage protection at module input
* Open circuit protection without battery
* Reverse current protection at night
* Overtemperature and overload protection
* Battery overvoltage shutdown
Displays
* Multifunction LED display
* Multi-coloured LED
* 4 LEDs show operating states for operation , state of charge , fault messages
Options
* Night light function pre-set in the factory or adjustable via Fangpusun PA RC 100
* Parameterisation of function values via Fangpusun PA RC 10
