| Place of Origin: | CHINA |
| Brand Name: | OEM |
| Certification: | ISO9001, CE, SGS |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Multiple packaging |
| Delivery Time: | 10-15 working days |
| Payment Terms: | T/T, L/C, T/T, Western Union |
| Supply Ability: | 10000PCS |
| Product Name: | Flexible Solar Panels | Type: | Flexible |
|---|---|---|---|
| Size: | 1185*540*2.5mm | Panel Efficiency: | 22.6% |
| Solar Cell: | 125*125 Mm USA Sunpower Solar Cells | Color: | Deep Blue |
| Backsheet: | Double-Sided TPT | EVA: | Excellent Anti-aging Resistance |
| Junction Box: | General International Standard IP65 | Solar Cell Efficiency: | 21.3~23% |
| Keyword: | 120w Flexible Solar Panel | Item Type: | 120w Flexible Solar Panel |
| Highlight: | 120w Ultra Thin Solar Panels,Lightweight Ultra Thin Solar Cells,Flexible 120 Watt Solar Panels |
||

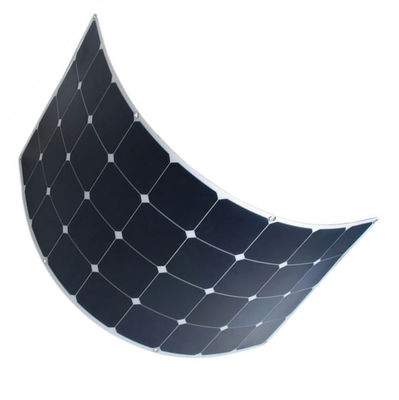

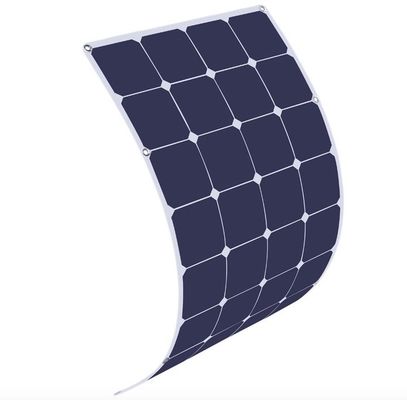

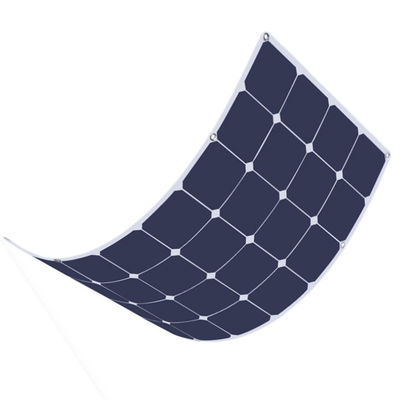

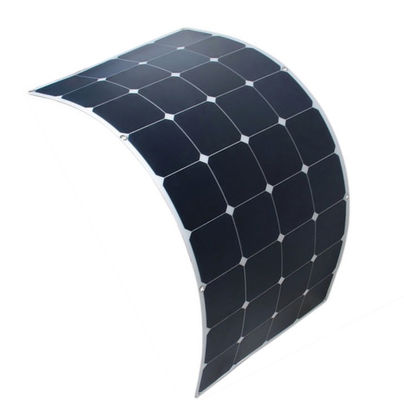

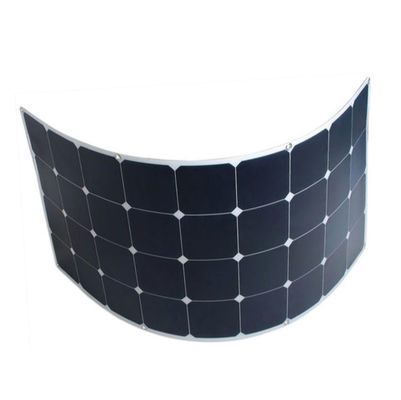

Ultra Thin Flexible Solar Panels
Product details
|
Solar cell |
125*125 mm USA Sunpower solar cells |
|
Color |
Deep Blue |
|
Backsheet |
Double-Sided TPT |
|
EVA |
excellent anti-aging resistance |
|
Junction Box |
General international standard IP65 |
|
Solar Cell efficiency |
21.3~23% |
|
Product name |
Flexible Solar Panels |
|
Keyword |
120w flexible solar panel |
|
Item Type |
120w flexible solar panel |
|
Cell size(mm): |
125*125mm USA Sunpower Solar cell |
|
Power tolerance: |
±3% |
|
Peak power(WP): |
120w |
|
Voltage at Pmax(Vmp): |
22.1V |
|
Current at Pmax(Imp): |
5.43A |
|
Open circuit voltage(Voc): |
26.5V |
|
Short circuit current(Isc): |
5.85A |
|
Max system voltage(VDC): |
600V |
|
Operating Temperature: |
-40℃ to + 85℃ |
|
Cell Efficiency: |
22.50% |
|
Temperature Coefficient of Pmax: |
-0.48%/℃ |
|
Temperature Coefficient of voc: |
-0.34%/℃ |
|
Temperature Coefficient of ISC: |
0.015%/℃ |
|
Nominal Operating Cell Temperature: |
45+/-2℃ |
|
Data under standard testing conditions(STC) |
1000W/M²; 1.5AM |
|
Type of Connector: |
MC4 with cable length 900mm |
|
Dimension(mm): |
1315*540*3MM |
|
Power (W) |
Vmp(V) |
Imp(A) |
Net Weight |
|
Power (W) |
Vmp(V) |
Imp(A) |
Net Weight |
|
20W |
19.8V |
1.01A |
0.3kg |
130W |
22.50V |
5.77A |
2.5kg |
|
|
30W |
17.0V |
1.76A |
0.7kg |
140W |
24.60V |
5.69A |
2.6kg |
|
|
40W |
19.8V |
2.02A |
0.9kg |
150W |
26.80V |
5.60A |
2.7kg |
|
|
50W |
17.6V |
2.84A |
1.2kg |
160W |
28.00V |
5.71A |
2.8kg |
|
|
70W |
18.2V |
3.71A |
1.5kg |
200W |
34.00V |
5.88A |
3.0kg |
|
|
80W |
20.0V |
4.00A |
1.6kg |
215W |
37.00V |
5.81A |
3.3kg |
|
|
100W |
17.7V |
5.70A |
1.9kg |
235W |
39.6V |
5.93A |
3.8kg |
|
|
110W |
18.2V |
6.04A |
1.9kg |
260W |
46.20V |
5.63A |
4.0kg |
|
|
115W |
19.8V |
5.80A |
2.3kg |
270W |
46.20V |
5.84A |
4.0kg |
|
|
120W |
20.5V |
5.85A |
2.3kg |
280W |
46.20V |
6.06A |
4.0kg |
Advantages
Semi flexible
can be bending angle up to 30-40 degrees
Lightweight
So easy carrying easy shipment easy installation
Super Thin
thickness only 3mm, easy joint to your yacht or RV roof , boat etc
High efficiency
High efficiency back-contact
mono USA cell up to 23%

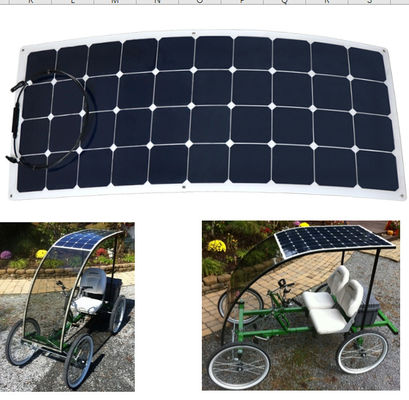

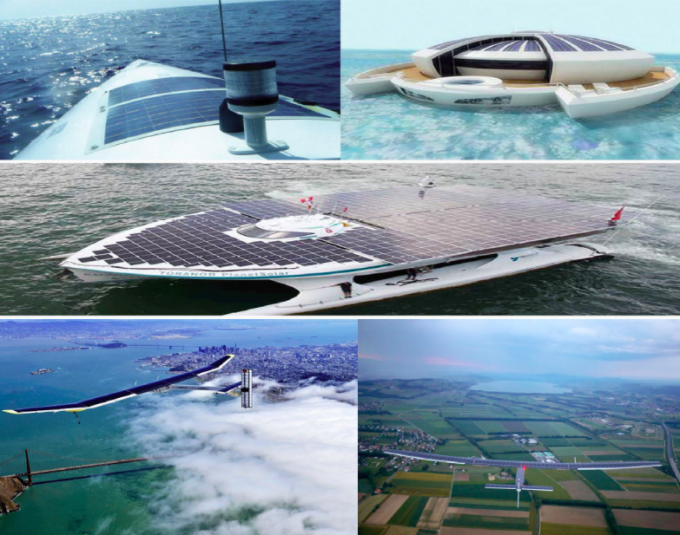

Widely Applications
Perfect wide use applications : Golf-cart , Yacht , boat , caravan , electric car , travel tourism car , patrol car , roof , camping, roof power generations , tent , portable bag , backpacks , portable generator kits ,lightweight roof solar system etc .
It is perfect for outdoor permanent use to provide free electricity charging 12V batteries to power various electronic devices, such as in a motorhome, caravan, camper, boat, or for solar lighting systems, off-grid and back up solar power systems, and complete household solar power systems.
