Place of Origin: | CHINA |
Brand Name: | OEM |
Certification: | ISO9001, CE, SGS |
Minimum Order Quantity: | Negotiable |
---|---|
Price: | Negotiation |
Packaging Details: | Multiple packaging |
Delivery Time: | 10-15 working days |
Payment Terms: | T/T, L/C, T/T, Western Union |
Supply Ability: | 10000PCS |
Type: | Polycrystalline Solar Panels | Front Glass: | High Transparency Tempered Glass, 3.2mm |
---|---|---|---|
Peak Power: | 0.7W | Max Current: | 110MA |
Short Current: | 115MA | Max Voltage: | 6V |
Size: | 90X55X5mm | Open Voltage: | 6.8V |
Battery: | 12 | Weight: | 0.31KG |
Material: | PCB, ABS, Polycrystalline Silicon, Epoxy | Power Cord: | 3M |
High Light: | Lightweight Poly Solar Panel,6V Solar Photovoltaic Module,0.8W Solar Module Panel |

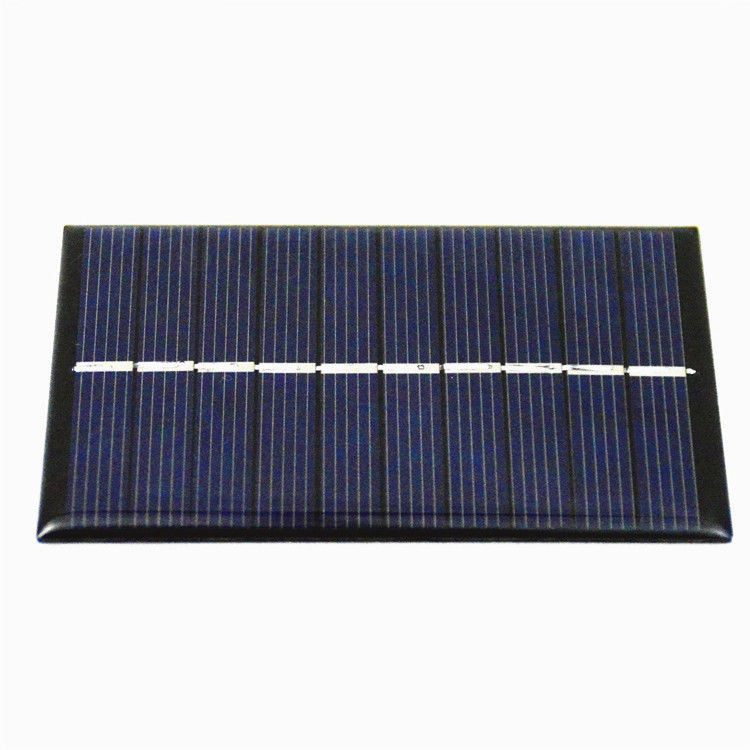

Lightweight 6V 0.8W Polycrystalline Silicon Solar PV Modules
The high efficiency solar PV module adopts the worlds highest efficiency cell with efficiency up to 23%, and efficiency of the module is 25-30% higher than the traditional ones, this cell’s positive pole and the negative pole are on the same side, the cell’s front side can absorb maximum sunlight, so that it can get the maximum power.
Module characteristic
1. High conversion rate and efficient output Poly crystalline Silicon.
2. Mini Solar Panels with excellent weak light effect to charge solar kits system.
3. High quality and high transmittance of toughened glass special for mini solar panels.
4. The unique process makes the components look strong and anti-snow, and easy to install.
5. Special techniques to avoid Mini Solar Panels the freezing and deformation of water in the frame Suitable for all kinds of small power appliances, emergency lights, advertising lights, traffic lights, household lights, electric fans, such as solar water pumps, solar street lamps, small solar systems.
6.Mini Solar Panels suitable for all kinds of small power appliances, emergency lights, advertising lights, traffic lights, household lights, electric fans, such as solar water pumps, solar street lamps, small solar systems.
7. Quality solar cells with high solar energy conversion up to 19.5%.
8. Mono-crystalline or poly-crystalline silicon solar cells are for options.
9. Transparent low-iron tempered glass and anodized aluminum frame to ensure modules working in extreme outdoor environment.
10. Lifespan up to 25 years for solar panel photo-voltaic.
Model | ZW-9055-5V | |
Size | 90X55X2.5mm | |
Material | Poly-silicon drop gel can be customized | |
Battery | 10 | |
Peak power | 0.6W | |
Max voltage | 5.0V | |
Max current | 0.15A | |
Open voltage | 5.5V | |
Short current | 0.30A | |
Weight | 15.2G | |
Raw Material |
Poly-crystalline Silicon Epoxy Adhesive Printed Circuit Board (PCB) |
|
Color | Customize | |
Warranty Period | Replacement for manufacturing defects within 5 years | |
Optimized cell efficiency | 17%-19% | |
Operating temperature | -40°C to +85°C | |
NOCT | 48°C+/-2°C | |
Guaranteed | 15 year:90% of its nominal power rating | |
Power Output | 25 year:80% of its nominal power rating | |
Warranty Period | Replacement for manufacturing defects within 5 years | |
Certificates | CE, RoHS, FCC, TUV | |
Cells | Mono crystalline silicon Photo-voltaic cell | |
Current temperature coefficient | %/K | 0.06+/-0.01 |
Voltage temperature coefficient | mV/K | -(78+/-10) |
Power temperature coefficient | %/K | -(0.5+/-0.05) |
