Place of Origin: | CHINA |
Brand Name: | OEM |
Certification: | ISO9001, CE, SGS |
Minimum Order Quantity: | Negotiable |
---|---|
Price: | Negotiation |
Packaging Details: | Multiple packaging |
Delivery Time: | 10-15 working days |
Payment Terms: | T/T, L/C, T/T, Western Union |
Supply Ability: | 10000PCS |
Main Market: | Asia Africa Southeast Asia | Cell Material: | Monocrystalline Silicon |
---|---|---|---|
Frame: | Anodized Aluminum Alloy | Back Sheet: | TPE Quality Plastic |
Cell Color: | Black | Junction Box: | JB With 3m Wire And Connector |
Max. Power:: | 60W 80W 120W 180W 240W | Front Sheet: | High Transmissions Low Iron Tempered Glass |
Highlight: | Folding Portable Solar Panels,80w Folding Solar Panel,Foldable Solar Panel Charger |

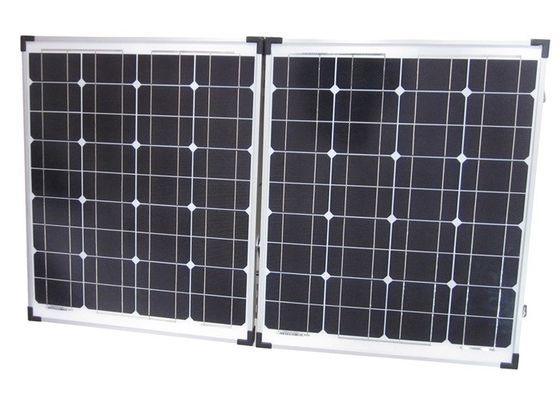

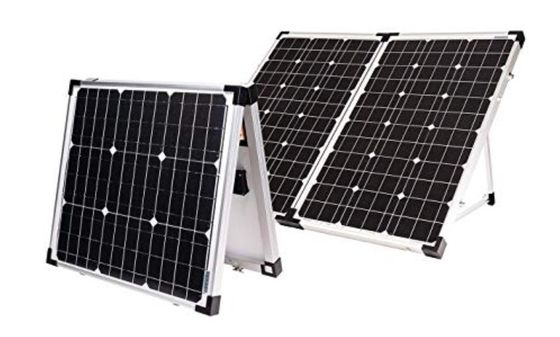

Portable Foldable Solar Charger
Portable foldable solar charging systems are available from 40w up to 200w. These portable foldable panels are a great way to maximise storage capacity of your RV or garage. They can be stored for extended periods of time and are easily deployed when the extra power is required for vacations or emergency backup power.
When you arrive at your destination, the set up process takes less than 5 minutes. Unpack the bag/case, unfold the panels, adjust the tilt legs, set on the ground in a sunny location pointing south, and finally connect the wires to your battery.
The two manufacturers we carry are from Solarland USA and Zamp Solar. Both manufacturers have a great portable foldable solar panel product and we have summarized the main features of each manufacturer to help our customers choose the best model for their portable solar panel needs.
Parameters Table
Type | Folded size | Weight | Specification | ||||
Max-power | Volatage at Pmax | Current at Pmax | Open- Circuit Voltage |
Short- Circuit Current |
|||
Module | MM | KG | W | V | A | V |
A |
OLPV-200W | 1200*540*70 | 20 | 200 | 18 | 10.53 | 22 |
11.37 |
OLPV-190W | 190 | 18 | 10.15 | 22 |
10.96 |
||
OLPV-180W | 180 | 18 | 9.62 | 22 |
10.38 |
||
OLPV-170W | 1000*540*70 | 16 | 170 | 18 | 9.44 | 22 |
10.2 |
OLPV-160W | 160 | 18 | 8.89 | 22 |
9.6 |
||
OLPV-150W | 150 | 18 | 8.33 | 22 |
9 |
||
OLPV-120W | 810*540*70 | 14 | 120 | 18 | 6.67 | 22 |
7.2 |
OLPV-110W | 110 | 18 | 6.11 | 22 |
6.6 |
||
OLPV-100W | 610*540*60 | 10 | 100 | 18 | 5.56 | 22 |
6 |
OLPV-90W | 90 | 18 | 5 | 22 |
5.4 |
||
OLPV-80W | 80 | 18 | 4.44 | 22 |
4.8 |
||
OLPV-60W | 420*540*60 | 9 | 60 | 18 | 3.33 | 22 |
3.6 |
1). Product Name
Portable folding solar charger kit/Portable folding solar panel kit
2). Specifications
Foldable and portable,easy to carry
High efficiency monocrystallin solar panels with excellent performance
Provide energy for small electric appliances such as TV/radio/light/refrigerator/etc.,camping and emergency home power supply
3). Standard Test Condition
Under 1000W/m2, AM1.5, 25℃
4). E-mail Us For Details
The foldable solar panel kit with integrated charge controller can charge a battery directly and also a usb output to charge mobile phones, tablets and digital camera. This kit bring mobile solar power for RV, caravans, motor homes, trucks, golf car, boats as well as all the outdoor activities..
The foldable solar panel kit with high efficiency solar cell which can generate maximum power in the fix area and aluminum frame and supporting bracket, easy to install to absorb the sunlight, just plug and play.
